Complete Turn-Key Repeater Kits


ROGER-GPS solutions offer you uninterrupted GNSS (Beidou, GPS, Galileo, and Glonass) satellite signal service inside buildings, tunnels, shops, and in vehicles. We offer plug and play kits including everything needed for a successful installation. These kits are offered in two versions:

  • Repeater Kits for BEIDOU B1 (1.561 GHz), GPS L1 (1.57542 GHz), GALILEO E1 (1.57542 GHz), GLONASS G1 (1.602 GHz) signals

  • Repeater Kits for BEIDOU B1 (1.561 GHz), GPS L1 (1.57542 GHz), GPS L2 (1.2276 GHz), GALILEO E1 (1.57542 GHz), GLONASS G1 (1.602 GHz) signals

Complete Repeater Kits


Complete Turn-Key Repeater Kits for GPS L1 / Beidou / Galileo / Glonass


IP51 Kits

GNSS-L1G1GA-BP-US

Basic Kit including everything needed for a successful installation.

  • GPS L1, GLONASS G1, Galileo E1, BeiDou B1 and SBAS (WAAS, EGNOS, QZSS & MSAS) Dome Antenna, TNC Female Panel Mount +40dB

  • Coaxial cable with connectors 65 ft. (20 m)

  • Power supply (IP51)

  • GPS L1 / Beidou / Galileo / Glonass variable gain repeater (IP51)

GNSS-L1G1GA-BP40-US

Basic Kit including everything needed for a successful installation.

  • GPS L1, GLONASS G1, Galileo E1, BeiDou B1 and SBAS (WAAS, EGNOS, QZSS & MSAS) Dome Antenna, TNC Female Panel Mount +40dB

  • Coaxial cable with connectors 131 ft. (40 m)

  • Power supply (IP51)

  • GPS L1 / Beidou / Galileo / Glonass variable gain repeater (IP51)

GNSS-DCP

Basic Kit including everything needed for temporary installations in vehicles or battery powered environments.

  • Magnetic Patch Antenna, with fixed 19.6 ft. (6 m) cable

  • DC Power Supply

  • GPS L1 / Beidou / Galileo / Glonass variable gain repeater (IP51)

GNSS-EP-US

Basic Kit including everything needed for temporary installations indoors.

  • Magnetic Patch Antenna, with fixed 19.6 ft. (6 m) cable

  • AC Power supply (IP51)

  • GPS L1 / Beidou / Galileo / Glonass variable gain repeater (IP51)

GNSS-BPDC

Basic Kit including everything needed for installation in vehicles or battery powered environments.

  • GPS L1, GLONASS G1, Galileo E1, BeiDou B1 and SBAS (WAAS, EGNOS, QZSS & MSAS) Dome Antenna, TNC Female Panel Mount +40dB

  • Coaxial cable with connectors 65 ft. (20 m)

  • DC Power supply

  • GPS L1 / Beidou / Galileo / Glonass variable gain repeater (IP51)

IP67 Kits

GNSS-L1G1GA-OF-KIT1

Basic Kit including everything needed for a successful installation.

  • GPS L1, GLONASS G1, Galileo E1, BeiDou B1 and SBAS (WAAS, EGNOS, QZSS & MSAS) Dome Antenna, TNC Female Panel Mount +40dB

  • Coaxial cable with connectors 65 ft. (20 m)

  • Power supply (IP51)

  • GPS L1 / Beidou / Galileo / Glonass variable gain repeater (IP67)

GNSS-L1G1GA-OF-KIT2

Basic Kit including everything needed for a successful installation.

  • GPS L1, GLONASS G1, Galileo E1, BeiDou B1 and SBAS (WAAS, EGNOS, QZSS & MSAS) Dome Antenna, TNC Female Panel Mount +40dB

  • Coaxial cable with connectors 131 ft. (40 m)

  • Power supply (IP51)

  • GPS L1 / Beidou / Galileo / Glonass variable gain repeater (IP67)

GNSS-L1G1GA-67-KIT1

Basic Kit including everything needed for a successful installation.

  • GPS L1, GLONASS G1, Galileo E1, BeiDou B1 and SBAS (WAAS, EGNOS, QZSS & MSAS) Dome Antenna, TNC Female Panel Mount +40dB

  • Coaxial cable with connectors 65 ft. (20 m)

  • Power supply (IP67)

  • GPS L1 / Beidou / Galileo / Glonass variable gain repeater (IP67)

GNSS-L1G1GA-67-KIT2

Basic Kit including everything needed for a successful installation.

  • GPS L1, GLONASS G1, Galileo E1, BeiDou B1 and SBAS (WAAS, EGNOS, QZSS & MSAS) Dome Antenna, TNC Female Panel Mount +40dB

  • Coaxial cable with connectors 131 ft. (40 m)

  • Power supply (IP67)

  • GPS L1 / Beidou / Galileo / Glonass variable gain repeater (IP67)


Complete Repeater Kits for Beidou B1 / GPS L1 & L2 / Glonass G1 / Galileo E1


GNSS-L1L2G1GA-67-BP-US

Basic Kit including everything needed for a successful installation.

  • GPS L1/L2, GLONASS G1/G2 + BeiDou B1 + Galileo E1 35dB gain antenna, with adjustable mount and cable spacer

  • Coaxial cable with connectors 65 ft. (20 m)

  • Power supply (IP51)

  • Beidou B1/GPS L1&L2/GLONASS G1/Galileo E1 variable gain repeater (IP67)

Repeaters

IP51

GNSS-L1G1GA-US

BEIDOU B1, GPS L1 GLONASS G1 and GALILEO E1 repeater with power supply

IP67

GNSS-L1G1GA-IP67

BEIDOU B1, GPS L1, Glonass G1 and Galileo E1 repeater IP67 enclosure, no power supply

GNSS-L1G1GA-CHAIN

BEIDOU B1, GPS L1, Glonass G1 and Galileo E1 CHAIN repeater IP67 enclosure, no power supply,

GNSS-L1G1GA-CHAIN-Y

BEIDOU B1, GPS L1, Glonass G1 and Galileo E1 CHAIN amplifying repeater IP67 enclosure, no power supply

GNSS-L1L2G1GA-67

BEIDOU B1, GPS L1 and L2, Glonass G1 and Galileo E1 CHAIN repeater in dual IP67 encl., no power supply

Amplifiers & Splitters

IP51

GNSS-A

ROGER-GPS Amplifier

GNSS-S

ROGER-GPS Splitter

GNSS-S2

ROGER-GPS Splitter S2 (1to2)

GNSS-AS

ROGER-GPS Amplifier & Splitter

IP67

GNSS-A-IP67

ROGER-GPS Amplifier 16dB in IP67 enclosure

GNSS-S-IP67

ROGER-GPS Splitter 5 ports in IP67 enclosure

GNSS-S2-IP67

ROGER-GPS Splitter 2 ports in IP67 enclosure

GNSS-AS-IP67

ROGER-GPS Amplifier & Splitter 3 ports in IP67 enclosure

Tactical (OPSEC) Repeater Kits

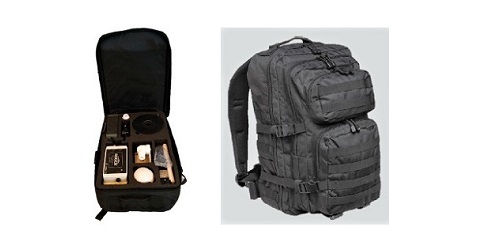

GNSS-TAC-H

ROGER-GPS tactical repeater kit packed in a rugged compact case. Use cases include MISSION CRITICAL and other PUBLIC SAFETY related services – whether it is location or timing related applications.

Everything you need for indoor GNSS in one compact case.

* Definition of IP Ratings

First digit identifies protection level of the equipment inside the enclosure against solids and goes from 0 (no protection) to 6 (dust tight). Second digit identifies protection of equipment inside enclosure against liquids and goes from 0 (not protected) to 8 (protected against immersion beyond 1 meter).

  • IP51 – Dust Protected – Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment; complete protection against contact

  • IP51 – Dripping Water – Dripping water (vertically falling drops) shall have no harmful effect

  • IP67 – Dust tight – No ingress of dust; complete protection against contact.

  • IP67 – Immersion up to 1 m – Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 meter of submersion).

Contact Us Today!

If you have requirements that cannot be met with any of the standard products presented here, please contact us so that we can establish if a customized solution combining various elements can solve your requirements.

Contact Us

UEI # R1NSD1FCNSR3

(DUNS # 07-961-2178)

CAGE Code 79FY4

Steffe's & Company, LLC BBB Business Review

Current regulations restrict sales of GPS Repeaters to the following parties:
International Customers (outside the U.S.), agencies of the US Federal Government, branches of the US Military, parties operating under the direction of US Federal Government, parties that have received an STA or Experimental License under part 5 of the FCC rules, and parties that will be operating GPS Repeaters in a shielded room or anechoic chamber. For further information regarding NTIA requirements, see Chapter 8.3.28 of the NTIA manual, http://www.ntia.doc.gov/osmhome/redbook/8.pdf
